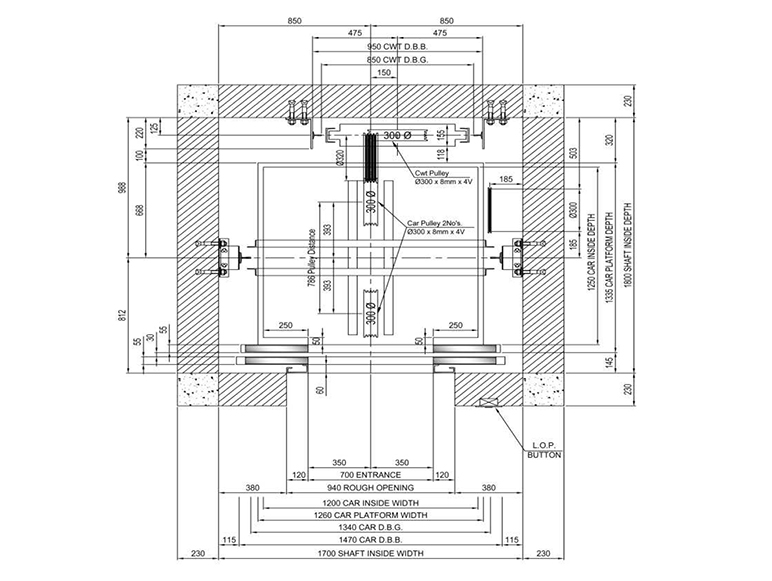

| Sl No | Rated Load | Shaft Size (WxD) | Car Size | Door Size | Pit | Over Head | |
| Persons | Kgs | ||||||
| 1 | 04 | 272 | 1600*1250 | 1100*700 | 700*2000 | 1400 (0.7 MPS) / 1500 (1.0 MPS) | 4300 (0.7 MPS) / 4500 (1.0 MPS) |
| 2 | 05 | 340 | 1600*1400 | 1100*850 | 700*2000 | ||
| 3 | 06 | 408 | 1600*1600 | 1100*1000 | 700*2000 | ||
| 4 | 08 | 544 | 1800*1700 | 1300*1100 | 800*2000 | ||
| 5 | 10 | 680 | 1900*1900 | 1350*1300 | 800*2000 | ||
| 6 | 13 | 884 | 2500*1700 | 2000*1100 | 900*2000 | ||
| 7 | 16 | 1088 | 2500*1900 | 2000*1300 | 1000*2000 | ||
| 8 | 20 | 1360 | 2500*2100 | 2000*1500 | 1000*2000 | ||
| Sl No | Rated Load | Shaft Size (WxD) | Car Size | Door Size | Pit | Over Head | |
| Persons | Kgs | ||||||
| 1 | 04 | 272 | 1350*1400 | 900*850 | 700*2000 | 1400 (0.7 MPS) / 1500 (1.0 MPS) | 4300 (0.7 MPS) / 4500 (1.0 MPS) |
| 2 | 05 | 340 | 1500*1400 | 1100*850 | 700*2000 | ||
| 3 | 06 | 408 | 1500*1500 | 1100*1000 | 700*2000 | ||
| 4 | 08 | 544 | 1600*1700 | 1200*1200 | 800*2000 | ||
| 5 | 10 | 680 | 1700*1950 | 1300*1350 | 800*2000 | ||
| 6 | 13 | 884 | 1700*2300 | 1200*2000 | 900*2000 | ||
| 7 | 16 | 1088 | 2000*2050 | 1600*1600 | 1000*2000 | ||
| 8 | 20 | 1360 | 2100*1950 | 2000*1500 | 1000*2000 | ||
We are a group of deep and professional elevator practitioners. Decades of experience tell us that there are still many problems of elevator industry have to be settled urgently.
